Tank valves are designed in several styles for use in inflating and gauging pressure tanks or compressed air chambers. They can be ordered complete with a variety of valve cores and caps. Standard valves are for use in various environments and in a wide range of operating temperatures and pressures; such conditions being dependent upon the valve core specified for a particular application. For other types or designs not shown, consult Dill Air Controls for technical assistance.
| DILL P/N | NO-LEAD DILL P/N | MADE IN USA | FINISH | A | B | C | D | E | TORQUE |
|---|---|---|---|---|---|---|---|---|---|
| 02500 | 55500* |
|
Nickel Plated | 1.31" | 0.38" | 0.75" | 1/8-27 NPT | 0.305-32 | 7 in. lbs. |
| 02516 | 55516* |
|
Brass | 1.31" | 0.56" | 0.056" | 1/4-18 NPT | 0.305-32 | 16 in. lbs. |
| 02526 | - |
|
Nickel Plated | 0.88" | 0.34" | 0.41" | 1/16-27 NPT | 0.305-32 | 5 in. lbs. |
| 02529 | 55529* |
|
Brass | 1" | 0.44" | 0.44" | 1/4-18 NPT | 0.305-32 | 16 in. lbs. |

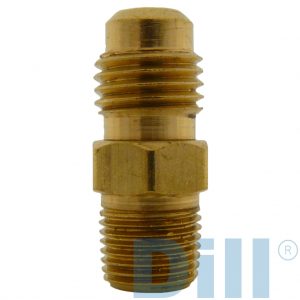

| 02550 | - |
|
Brass | 1.06" | 0.38" | 0.5" | 1/8-27 NPT | 0.4375-20 UNF-2A | 7 in. lbs. |
| SK-20420 | 55420* |
|
Nickel Plated | 0.91" | 0.38" | 0.39" | 1/8-27 NPT | 0.305-32 | 7 in. lbs. |
| SK-20422 | - |
|
Stainless Steel | 0.91" | 0.38" | 0.39" | 1/8-27 NPT | 0.305-32 | 7 in. lbs. |
| SK-2924 |
|
Brass | 2.04" | 0.41" | 0.35" | 1/8-27 NPT | 0.305-32 | 7 in. lbs. |
Warning: Tank valves are designed for the use with compressed air tanks. Valve must be securely threaded into tank wall or vessel. Read air tank manufacturer’s cautions regarding maximum air pressure. Do not overfill the tank. Failure to follow these instructions and specifications exactly may result in personal injury and/or property damage.
