Bundyweld valve stems simplify valve servicing. Protected with neoprene covering, they are easy to mount. Adjustable to any direction and have an o-ring seal. Interchangeable for either tube or tubeless applications.
To view Dill’s Large Bore catalog,
Click Here
| DILL P/N | TR P/N | MADE IN USA | HEIGHT | BEND ANGLE | EFFECTIVE LENGTH | DESCRIPTION | PART INFORMATION |
|---|---|---|---|---|---|---|---|
| J-650-03-USA | J-650-03 |
|
1.09" | 80° | 3.12" | ||
| J-650-USA | J-650-02 |
|
1.09" | 80° | 3.12" | ||
| J-653-03-USA | J-653-03 |
|
1.08" | 80° | 2.50" | ||
| J-653-USA | J-653-02 |
|
1.08" | 80° | 2.50" | ||
| J-654-USA | J-654-02 |
|
1.08" | 60° | 3.12" | ||
| J-655-USA | J-655-02 |
|
1.08" | 74° | 3.13" | ||
| J-657-USA | J-657-02 |
|
1.08" | 80° | 4.00" | ||
| J-658-USA | J-658-02 |
|
1.08" | 80° | 5.50" | ||
| J-669-USA | J-669-02; J4000-2 1/2 |
|
1.08" | 90° | 2.50" | ||
| J-670-USA | J670-02 |
|
Core Housing | Fits TR SP1000 spud; includes hex valve cap | |||
| J/670/SCR | J670-02 |
|
Core Housing | Fits TR SP1000 spud; includes screwdriver valve cap | |||
| VS-980-24-USA | J4000-24 |
|
1.08" | 90° | 24.00" | ||
| VS-980-4.5-USA | J4000-4.5 |
|
1.08" | 90° | 4.50" | ||
| VS-980-6-USA | J4000-6 |
|
1.08" | 90° | 6.00" | ||

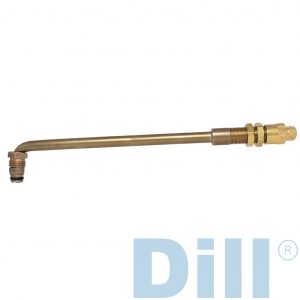

| VS-980-7.5-USA | J4000-7.4 |
|
1.08" | 90° | 7.50" | ||
| VS-980-9-USA | J4000-9 |
|
1.08" | 90° | 9.00" | ||
| J-651R | J-651-02 | 1.26" | 90° | 4.69" | |||
| J-652R | J-652-02 | 1.08" | 86° | 5.50" | |||
| J-656R | J-656-02 | 2.63" | 90° | 3.69" | |||
| VS-1045-2-03-HX | - | 1.06" | 45° | 2.00" | |||
| WH44-12D | - | 12.00" | 0° | ||||
| WH44-14D | - | 14.00" | 0° | ||||
| WH44-29.5D | - | 29.5" | 0° | ||||
| WH44-34.5D | - | 34.5" | 0° | ||||
| WH44-9D | - | 9.90" | 0° |
