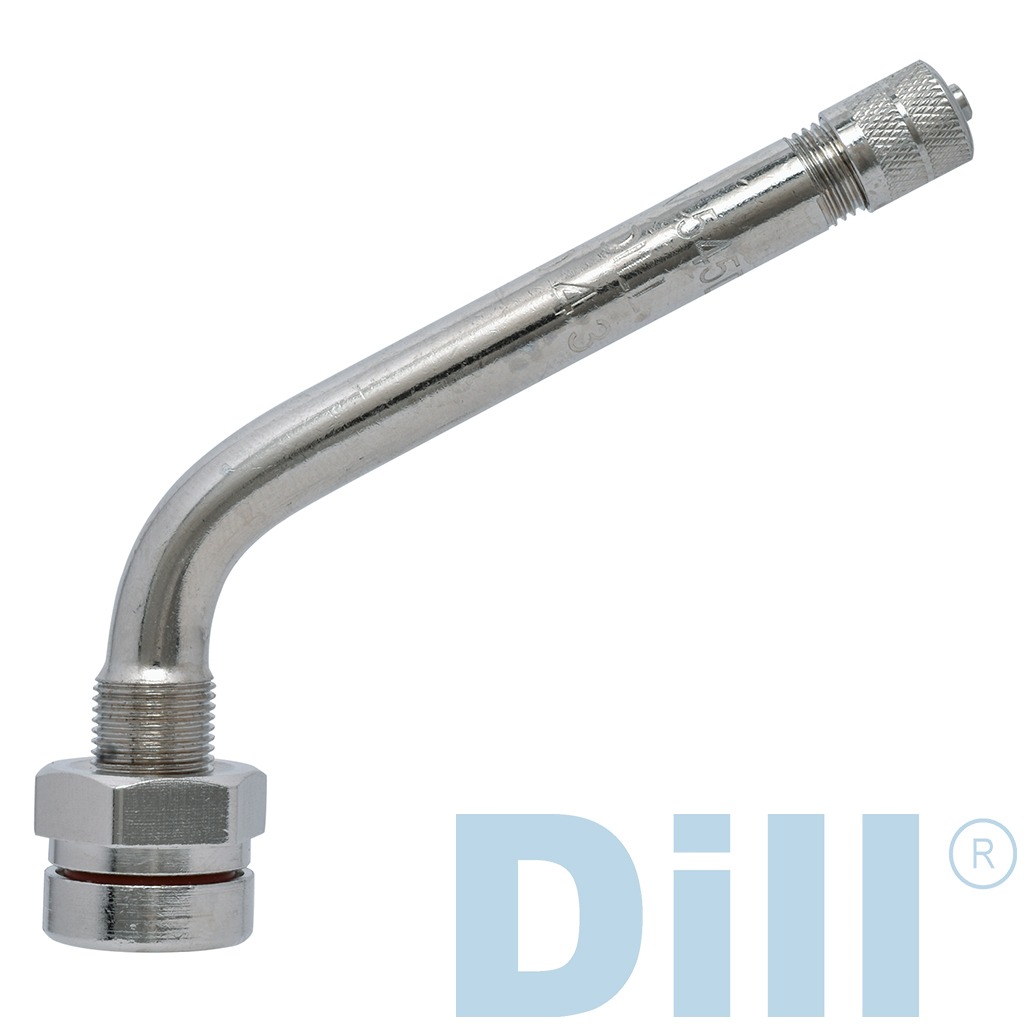

DV545D
Click for expanded view
Product Information
| DILL P/N | DV545D |
| DILL P/N | DV545D |
| TRA P/N (OE) | 545D |
| VALVE HOLE | 0.390" |
| TPMS TYPE | M6 Thread |
| SEAL TYPE | O-ring |

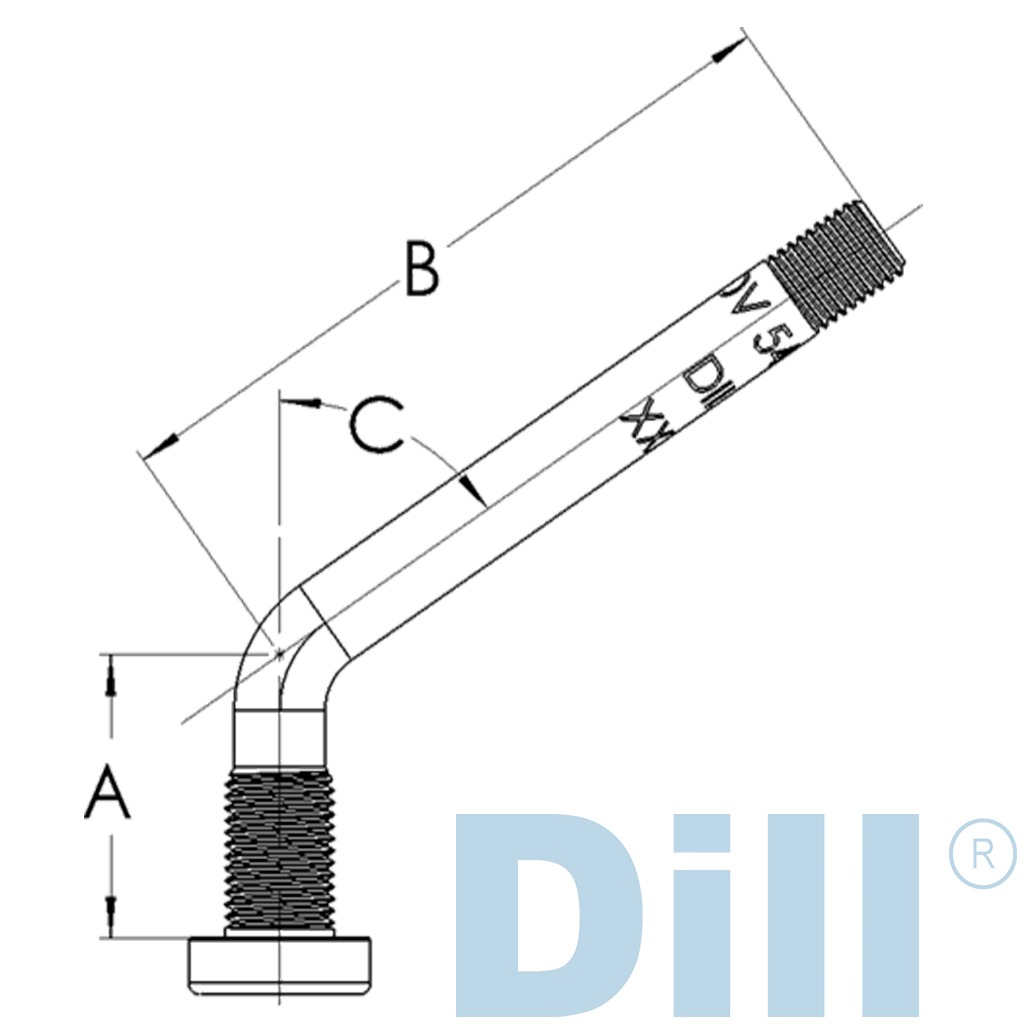

| COMMERCIAL TPMS A | 0.98" |
| COMMERCIAL TPMS B | 2.60" |
| COMMERCIAL TPMS C | 60° |
| COMMERCIAL TPMS MATERIAL | Plated Brass |
| HEX NUT TORQUE | 80-125 in-lbs |
