| DILL P/N | DESCRIPTION | PART INFORMATION | A | B | C | D | Y | Z | TORQUE (HEX NUT) | TORQUE (CORE HOUSING) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3107 | Liquid Fill Tool | Extracts air-water core housing, or a Standard or Large bore core only, to allow faster inflation. Female 1/2" NPT. | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5170 | Valve core wrench & tire deflator | Dual purpose tool; becomes deflator when screwed firmly over valve. Opposite end has standard bore valve core remover. | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5209 | 4-Way Valve Tool | Insert and remove valve cores including cores with broken swivels; cleans and recuts core and valve cap threads | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5209L | Large Bore Valve Tool | Repairs damaged threads and removes damaged valve cores | ||||||||

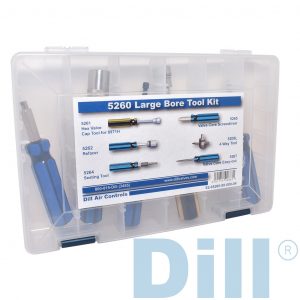

| 5260 | Large Bore Tool Kit | Contains 8 tools in a handy tacklebox style kit (includes 5261, 5262, 5264, 5265, 5266, 5267) | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5261 | Hex Valve Cap tool for 8971H | Included in 5260 Large Bore Tool Kit | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5262 | Refacer | Included in 5260 Large Bore Tool Kit | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5264 | Seating Tool | Included in 5260 Large Bore Tool Kit | 45-75 in. lbs. | 3 in. lbs. | ||||||
| 5265 | Valve Core Screwdriver | Included in 5260 Large Bore Tool Kit | ||||||||
| 5266 | Rethreader/Die | Included in 5260 Large Bore Tool Kit | ||||||||
| 5267 | Valve Core Easy Out | Included in 5260 Large Bore Tool Kit | ||||||||
| 5406 | Valve Core Inserter | Hexagonal; nickel-plated; 3" length for positive finger tip control | ||||||||
| 5407 | Snap-in valve installation tool | Rugged steel tool handles any length valve snap-in valve in any size rim, screws over valve threads, quickly install snap-in valves by applying pulling pressure. | ||||||||
| 5407-AL | Snap-in valve installation tool | An aluminum version of the 5407 installation tool with a unique built-in valve core driver on the end of the handle | ||||||||
| 5407-P | Snap-in valve installation tool | Plastic version of the 5407 with an internal metal insert to maintain strength and rigidity. | ||||||||
| 5411 | Valve core screwdriver | Compact, sturdy tool with plastic handle, allows firm grip to insert and remove valve cores. | ||||||||
| 5500-BP | Low Profile Bead Lever Tool | Patent-pending design; angled & knurled grip gives more leverage; blister-packed | ||||||||
| 5503 | Sleeves for 5500-BP Tool | 3-pack of black wheel-finish safe covers for 5500-BP tool | ||||||||
| 6108 | Tube Deflator | Quickly deflates tubes by applying air pressure to side inlet with air chuck, pressure action siphons air from the tube | ||||||||
| 6108-D | Deflating Nozzle | Same as 6108 with additional deflator pin for deflating tires without removing valve core | ||||||||
| 6129 | Easy–Out core extractor | Easy out, left handed thread easily removes core with broken swivel. | ||||||||
| 8909 | Valve Fishing Tool | Aligns and holds valve in position with valve hole while mounting tire, fits all valve hole sizes. | ||||||||
| 8909-C | Large Bore Fishing Tool | Guides, aligns, and holds valve while mounting tire. | ||||||||
| AD-8 | Inflator Adaptor | Faster and safer inflation/deflation of super large bore tires; can be hooked to 1/2" NPT or 3/4" NPT | 1.25" | 4.69" | 2.31" | 0.56" | 28° | 28° |
