| DILL P/N | TR P/N | MADE IN USA | HEIGHT | BEND ANGLE | EFFECTIVE LENGTH | VALVE HOLE | DESCRIPTION | PART INFORMATION | A | B | C | D | Y | Z | TORQUE (HEX NUT) | TORQUE (CORE HOUSING) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 211 | HN-1 |
|
Hex Nut | Fits 0.486-26 thread on Large Bore; Brass - 5/8" hex | 45-75 in. lbs. | 3 in. lbs. | ||||||||||
| 301A | - |
|
Extension | 90° bend, 3.66" effective length; for tube valve applications | ||||||||||||
| 302A | - |
|
Extension | 80° bend, 1.78" effective length; for tube valve applications | ||||||||||||
| 6489 | CH1 |
|
Core Housing | Fits old style TR 218 & TR 220 valves | ||||||||||||
| 6489A | CH3 |
|
Core Housing | Standard bore with octagon grip; O-ring seal | ||||||||||||
| 70-HT |
|
Valve Core Max working pressure: 450psig -65°F to 250°F ; 0.13" pin travel Viton cup seal material | Standard: TR C2,A-A-52611; Opening Pressure: 35 psi; Temperature Range (°F): -65 to 250; Cup Seal Material: Silicone; 0.13" pin travel | |||||||||||||
| 8771 | LN-10 |
|
Lock Nut | For TR 218A/220A; Brass | ||||||||||||
| 8807 | AD1 |
|
Adapter | Reduces large bore to standard bore; fits inside 0.305.32 valve core threads | ||||||||||||
| 9061 | AD1 |
|
Adapter | Reduces large bore to standard bore; fits over 0.485-26 valve cap threads | ||||||||||||
| HN-80 | HN-80 |
|
Hex Nut | Fits 0.687-24 thread; Brass - 15/16" hex | ||||||||||||
| J-670-3-USA | J670-03 |
|
1.42" | - | - | |||||||||||

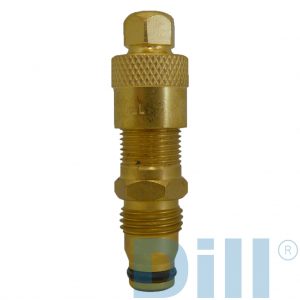

| J-670-USA | J670-02 |
|
Core Housing | Fits TR SP1000 spud; includes hex valve cap | ||||||||||||
| J/670/SCR | J670-02 |
|
Core Housing | Fits TR SP1000 spud; includes screwdriver valve cap | ||||||||||||
| 447 | RG-7 | EPDM Grommet | Fits TR 618A-623A air/liquid valves | 45-75 in. lbs. | 3 in. lbs. | |||||||||||
| 454 | RG-22 | EPDM Grommet | Fits TR SP2 spud | 45-75 in. lbs. | 3 in. lbs. | |||||||||||
| 8771A | LN-10 | Lock Nut | For TR 218A/220A; Nylon | |||||||||||||
| CH-16 | CH16 | Core Housing | Air/liquid core housing for TR SP8 or TR SP9 spuds | 0.62" | 3.31" | - | - | - | 18° | |||||||
| CH-3D | CH3 | Core Housing | Standard bore with knurled grip; O-ring seal | 1.25" | 4.69" | 2.31" | 0.56" | 18° | 28° | |||||||
| CH-8 | CH8 | Core Housing | Used with large and super large bore spuds; utilizes an O-ring seal | |||||||||||||
| CH3-F | CH3 | Core Housing | Standard bore with ribbed grip; O-ring seal | 0.88" | 5.00" | 1.69" | 0.81" | 45° | 45° | |||||||
| VS-902-WZP-10 | - | Valve hole plug | Plug seal for 0.625" valve hole; 0.70" effective length | |||||||||||||
| VS-902-WZPL | - | 1.15" | 0.625" | Long valve hole plug Longer version of VS-902-WZP-10 | ||||||||||||
| VS-977 | SP2 | Valve Spud | Tubeless spud for large bore swivel valves; fits 0.812" valve hole | |||||||||||||
| VS-977P | SP2 | Valve Hole Plug | Plug seal for 0.812" valve hole |
