| DILL P/N | TR P/N | MADE IN USA | DESCRIPTION | PART INFORMATION | A | B | C | D | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|
| HN-80 | HN-80 |
|
Hex Nut | Fits 0.687-24 thread; Brass - 15/16" hex | ||||||
| 7480-25 | Inflator | 25' x 1/2" USA-Made EPDM Rubber Hose; Includes AD8 adapter; Assembled & Tested in the USA; 2x faster flow rate than 3/8" hose! | ||||||||
| AD-8 | Inflator Adaptor | Faster and safer inflation/deflation of super large bore tires; can be hooked to 1/2" NPT or 3/4" NPT | 1.25" | 4.69" | 2.31" | 0.56" | 28° | 28° | ||
| CH-16 | CH16 | Core Housing | Air/liquid core housing for TR SP8 or TR SP9 spuds | 0.62" | 3.31" | - | - | - | 18° | |
| CH-8 | CH8 | Core Housing | Used with large and super large bore spuds; utilizes an O-ring seal | |||||||
| LS-0290 | - | Valve | Super Large Bore turret valve; 8in / 203.20mm length; 15° bend; Installation torque: 175-200 in-lbs. | |||||||
| LS-675 | AD5-75 | Valve | Super Large Bore swivel angle connector; 75° bend; Installation torque: 25-40 in-lbs. | |||||||

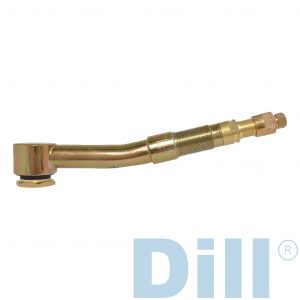

| LS-6779 | Valve | Super Large Bore turret valve; 6.125in / 155.57mm length; 15° bend; 0.8125" valve hole; Installation torque: 175-200 in-lbs. |
