| DILL USA P/N | DILL ACP P/N | TR P/N | EFFECTIVE LENGTH | VALVE HOLE | BEND ANGLE (°F) | MATERIAL | TORQUE (IN. LBS.) |
|---|---|---|---|---|---|---|---|
| 54-MS-00 | 1.89" | 0.390" | 0° | Ni-plated Brass | 106-133 | ||
| 60-MS-00 | 2.13" | 0.390" | 0° | Ni-plated Brass | 106-133 | ||
| 70MS-7 | - | 1.10" to bend 1.28" after bend | 0.390" | 7° | Ni-plated Brass | 106-133 | |
| - | TR-575 | 575 | 1.13" | 0.625" | - | Brass | 35-55 |
| - | VS-1223-WZ | - | 1.00" | 0.625" | 23° | Brass | 35-55 |
| VS-1223R | - | - | 1.00" | 0.625" | 23° | Brass | 35-55 |
| - | VS-500-WZA | 500 | 2.00" | 0.625" | - | Brass | 35-55 |
| - | VS-501-WZA | 501 | 1.50" | 0.625" | - | Brass | 35-55 |
| VS-501R | - | 501 | 1.50" | 0.625" | - | Brass | 35-55 |
| VS-570-R | - | 570 | 3.13" | 0.625" | - | Brass | 35-55 |
| - | VS-570-WZA | 570 | 3.13" | 0.625" | - | Brass | 35-55 |
| - | VS-571-WZA | 571 | 3.38" | 0.625" | - | Brass | 35-55 |
| VS-571R | - | 571 | 3.38" | 0.625" | - | Brass | 35-55 |
| VS-572-EQ | - | 572EQ | 3.75" | 0.625" | - | Brass | 100-130 |
| VS-572-EQ-13 | - | - | 3.75" | 0.625" | 13° | Brass | 100-130 |
| VS-572-F19 | - | 572-F19 | 3.75" | 0.625" | 31° | Brass | 35-55 |
| - | VS-572-WZA | 572 | 3.75" | 0.625" | - | Brass | 35-55 |
| VS-572R | - | 572 | 3.75" | 0.625" | - | Brass | 35-55 |
| VS-573-EQ | - | 573EQ | 4.38" | 0.625" | - | Brass | 100-130 |
| VS-573-EQ-13 | - | - | 1.38" | 0.625" | 13° | Brass | 100-130 |
| - | VS-573-WZA | 573 | 4.38" | 0.625" | - | Brass | 35-55 |
| VS-573R | - | 573 | 4.38" | 0.625" | - | Brass | 35-55 |
| - | VS-574-WZA | 574 | 4.38" | 0.625" | - | Brass | 35-55 |
| VS-574R | - | 574 | 5.00" | 0.625" | - | Brass | 35-55 |

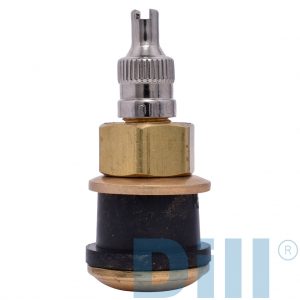

| VS-903R | - | 575 | 1.13" | 0.625" | - | Brass | 35-55 |
